Product Display

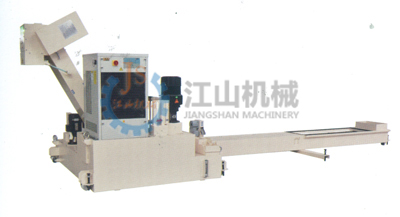

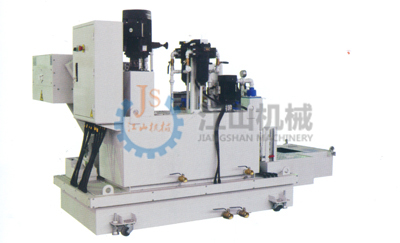

Drum filter type scraper type + high pressure water tank device

●Various filters and drum filter chip conveyors are combined to make them a highly accurate cooling filter.

●Combine the high voltage who wants the device into one.

●Multiple types of cooling pumps can be configured

●Increase filtration capacity and extend coolant life

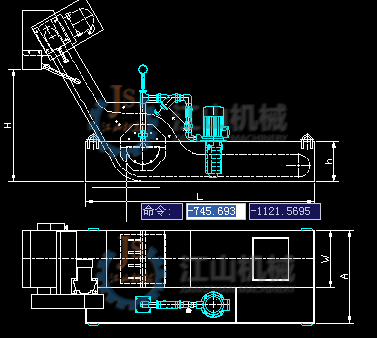

Performance

W	401 .8, 601 .8, 801 .8	c	2500 or more
h	280 or more	a	W-106.4 or less
H	460 or more	b	200 or more
A	W+500 or more	e	Set up as per the capacity of the high pressure pump
B	2000 or more	f	Set up as per the capacity of the high pressure pump

Size of each part

Geared Motor	0.2KW 4P AC 220V/380V
Chain	C2062H Pitch 38.1mm
Conveying Rate	1.3m/min
Conveying Capacity	W=601.8 0.06m3/h
Safety Device	rorque limiter+approaching switch
Scrap Requirements	Little non-magnetic scrap (less than 50mm)
Filter Screen	80 mesh (50um)
Precision Filtration	20um(high pressure part)
Optional Device	200L/min 40L/min 0.05MPa or more W=401 .8	300Umin 40L/min 0.05MPa or more W=601 .8	400L/min 40Umin 0.05MPa or more W=801 .8
Optional Device	Electric control box,coolant pump,nilometer,oil-water separator
